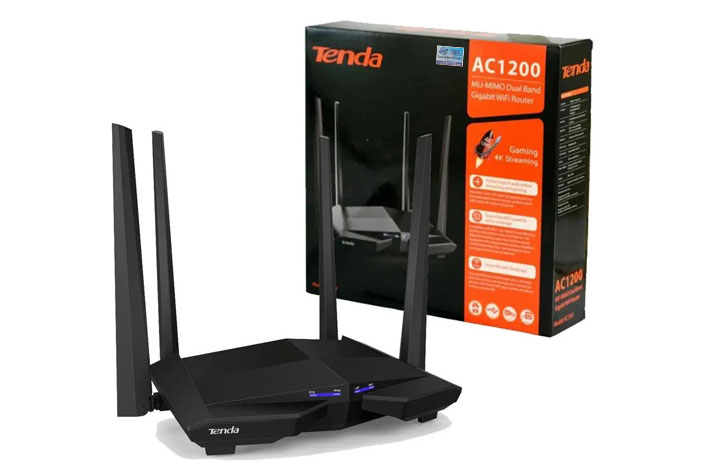

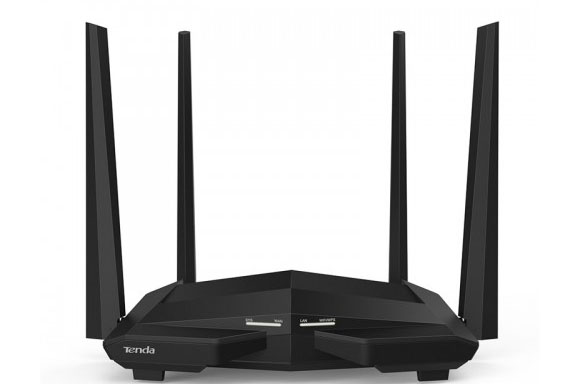

Tenda AC10 AC1200 Mbps Gigabit Dual-Band Wi-Fi Router

General

Brand

Tenda

Model

Tenda AC10

Router Type

Wireless & Ethernet

Part No

AC10

Hardware

Data Transfer Rate (Wifi)

1200 Mbps

WiFi Network Standards

IEEE 802.11 a, g, b, n, ac

LAN Network Standard

10/100/1000

WAN Network Standard

10/100/1000

Data Transfer Rate (Lan)

1000 Mbps

CPU

1GHz

RAM

128MB DDR3

Storage

64MB

Interface

Interface(s)

3 x 10/100/1000 RJ45 LAN, 1 x 10/100/1000 RJ45 WAN

Number of WAN Port

1

Number of LAN Port

3

USB Interface

No

USB Interface Application

No

Internet Connectivity

WAN Only

SIM Card Slot Included

No

Sim Card Slot

No

Wireless

Antenna (Type & Qty)

4 x 6dBi External Dual Band Antennas

WAN Type

Dynamic IP, Static IP, PPPoE

Wi-Fi Generation

Wi-Fi 5

Band

Dual

Wi-Fi Coverage (Approximate)

Up to 2000 Sq. ft.

Number of Concurrent User

Up to 20 User connections

Performance

3G/4G

No

Mesh Technology

No

MIMO Technology

Yes

Security

Operating Frequency

2.4 GHz, 5 GHz

Operation/Working Wireless Modes

Router, Access Point, Range Extender (Repeater), WISP

Security Protocols

WPA-PSK, WPA2-PSK, WPA/WPA2

Firewall Protocols

Forbid UDP Flood Attack, Forbid TCP Flood Attack, Forbid ICMP Flood Attack, Forbid WAN Ping from Internet, PPTP, L2TP, IPSec

OS Compatibility

Windows XP, Vista, 7, 8, 8.1, 11 MAC OS, UNIX or Linux

VPN Support

No

Voice Assistant

No

Built in Antivirus

No

Electrical

Power

12V - 2A

Operating Temperature

0 degree C - 40 degree C

Storing/Storage Temperature

-40 degree C - 70 degree C

Operating Humidity

10% - 90% non-condensing

Storing/Storage Humidity

5% - 90% non-condensing

Physical Description

Button

1 x WiFi On/Off button 1 x Reset/WPS button

LED Indicators

1 x WAN, 1 x LAN, 1 x Wi-Fi/WPS, 1 x SYS

Weight (Kg)

350g

Dimensions

220 x 141.5 x 49mm

Color

Black

Warranty

Warranty Details

1 Year (Without Adapter)

Additional Info

Feature

Smart Wi-Fi Schedule, Smart Power Saving, Smart LED On/Off, Bandwidth Control, MAC Address Filter, IP and MAC Address Binding, IPTV, Black/White List, MAC Clone, Static Routing, System Log, Network Time, Backup/Restore Settings, System Upgrade Online, Supports VPN for your private network, Supports one-click bandwidth control, WiFi Repeater to expand WiFi coverage, Guest network for higher network security, Supports L2TP, PPTP and IPSec penetration, WiFi Schedule for smart life and green environment, Tenda WiFi app allows you to upgrade online, manage your network and devices remotely and get a real-time understanding of usage of your router, making life simple and easy.

Specialty

AC10 manifests excellent capacity on data processing and energy conservation. AC10 is a high-performance WiFi router designed with full Gigabit WAN and LAN ports, Beamforming+ technology makes WiFi signal of AC10 outstanding behind multiple walls. removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber.

Others

Power Input: 100 - 240V 50/60Hz, Power Output: DC 9V 1A, LED indicator: 1 x WAN, 1 x LAN, 1 x Wi-Fi/WPS, 1 x SYS, Transmit Powe: CE: <20dBm (2.4G), <23dBm (5G), FCC: <30dBm, WAN Connection Type: Dynamic IP/Static IP/PPPoE, Working Mode: Router/ AP/ Universal Repeater/ WISP, Management: Local Management, Remote Management, Tenda APP, Basic Function: SSID Broadcast and Hide, Beamforming, Signal Power Adjustment, Operating temparature: 0 degree C - 40 degree C, Operating Humidity: 10% - 90% RH non-condensing, Certification: CE, FCC, RoHS, BSMI, NCC, EAC, IC, Version: 4.

Certifications

CE, FCC, RoHS, BSMI, NCC, EAC, IC

Country Of Origin

China

Made in/ Assemble

China
