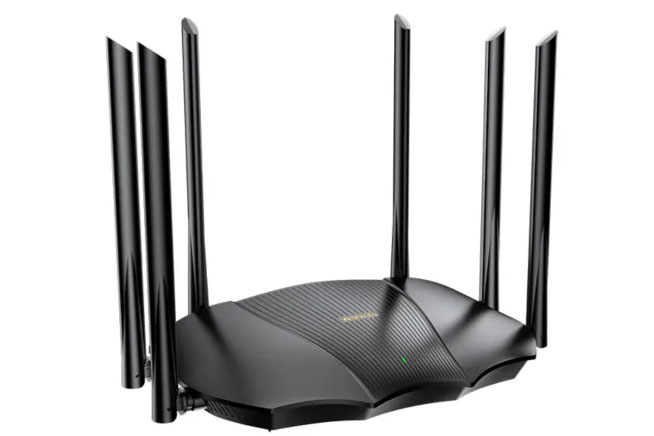

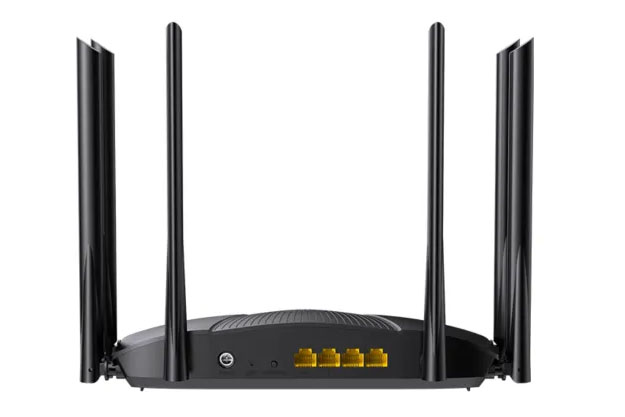

Tenda TX3000 Pro AX3000 Mbps Gigabit Dual-Band Wi-Fi 6 Router

General

Brand

Tenda

Model

Tenda TX3000 Pro

Router Type

Wireless & Ethernet

Hardware

Data Transfer Rate (Wifi)

3000 Mbps

WiFi Network Standards

IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/n/b/g 2.4GHz

LAN Network Standard

10/100/1000

WAN Network Standard

10/100/1000

Data Transfer Rate (Lan)

1000 Mbps

CPU

12nm Dual Cores, 1.3GHz

Interface

Interface(s)

1 x 10/100/1000 RJ45 WAN, 3 x 10/100/1000 RJ45 LAN

Number of WAN Port

1

Number of LAN Port

3

USB Interface

No

Internet Connectivity

WAN Only

Sim Card Slot

No

Wireless

Antenna (Type & Qty)

6 x 6dbi External Antennas

WAN Type

PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia), Unify, Maxis, Maxis-special, Celcom, Digi

Wi-Fi Generation

Wi-Fi 6

Band

Dual

Wi-Fi Coverage (Approximate)

Up to 3000 sq. ft.

Number of Concurrent User

Up to 25 User

Performance

3G/4G

No

Mesh Technology

Yes

MIMO Technology

Yes

Security

Operating Frequency

2.4 GHz, 5 GHz

Operation/Working Wireless Modes

Router, Access Point, Range Extender (Repeater), WISP, Client

Security Protocols

WPA2-PSK, WPA3-SAE/WPA2-PSK, Wireless Security: Enable/Disable, WPS(WiFi Protected Set-up) fast encryption

Firewall Protocols

ICMP Flood Attack Defense, TCP Flood Attack Defense, UDP Flood Attack Defense, Block Ping From WAN

VPN Support

Yes

Voice Assistant

No

Built in Antivirus

No

Electrical

Power

Input: AC 100 - 240V - 50/ 60Hz, Output: DC 12V - 1A

Operating Temperature

0 Degree C - 40 Degree C

Storing/Storage Temperature

-40 Degree C - 70 Degree C

Operating Humidity

10% - 90% RH non-condensing

Storing/Storage Humidity

5% - 90% RH non-condensing

Physical Description

Wall Mountable

Yes

Button

1 x WPS/ Mesh button, 1 x Reset button

LED Indicators

1 x LED

Dimensions

272.44 x 162.85 x 43.71mm

Color

Black

Warranty

Warranty Details

1 Year (Without Adapter)

Additional Info

Feature

SSID broadcasting and hiding, MU-MIMO, Beamforming signal directional transmission technology, 160MHz, OFDMA, 1024-QAM, Smart diagnosis, Smart LED on/off, Support App and web management, Bandwidth Control, Guest Network, MAC Address Clone, Supports black list and white list, Unify 2.4 GHz & 5 GHz, Static Routing, Remote Web Management, Backup & Restore configurations, Firmware upgrade online. Mac Filter Whitelist System is Available.

Specialty

TX3000 Pro is a dual-band Gigabit Wi-Fi 6 wireless router designed for users who pursue performance experience. Both its dual-bands support Wi-Fi 6 (802.11ax) technology and the concurrent rate is up to 2976Mbps (5GHz:2402Mbps, 2.4GHz: 574Mbps). TX3000 Pro is equipped with a 12nm process dual-core 1.3GHz CPU to ensure a stable and smooth network environment; supports Wi-Fi+, which can easily solve the problem of stable Wi-Fi coverage in very large homes; equipped with 5 built-in high-power FEMs , Wi-Fi has stronger wall penetration capabilities and longer transmission distances; it uses OFDMA+MU-MIMO technology to allow more devices to access the Internet at the same time, significantly improving transmission efficiency and significantly reducing latency.

Others

Data Rate: 5GHz: 2402 Mbps (802.11ax, HE160), 2.4GHz: 574 Mbps (802.11ax), Frequency: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), Network Protocol: IPv4 & IPv6, Operating Mode: Router Mode, AP Mode, Universal Repeater Mode (Client+AP,WISP), Parental Control: Client Filter, URL Filter, Time Limit, DHCP: DHCP Server, DHCP Client List, DHCP Static IP Address Reservation and Allocation, Virtual Server: Port Forwarding, DMZ Host, UPnP, DDNS: DynDNS, no-ip, oray, 88ip, VPN: IPSec Transparent Transmission, PPTP Transparent Transmission, L2TP Transparent Transmission, PPTP VPN Server, PPTP VPN Client, L2TP VPN Client, Package Contents: Wi-Fi Router x 1, RJ45 Ethernet Cable x 1, Power Adapter x 1, Quick Installation Guide x 1, Standard & Protocol: IEEE802.3, IEEE802.3u, IEEE802.3ab.

Certifications

CE, FCC, RoHS

Country Of Origin

China

Made in/ Assemble

China
